Larsen & Shaw is pleased to provide you with a full range of architectural hinge solutions for commercial, institutional and residential applications. We are the leader in architectural hinge manufacturing with a complete line of accessories and fasteners for all your hinge needs.
The benefit of architectural hinges is that the full height of the door is supported by the hinge allowing the door to stay perfectly aligned, eliminating stress on closers, automatic operators and locking hardware. Our standard Larsen & Shaw brand architectural hinge exceeds all hinge standards for the industry.
Edge Mount Hinges

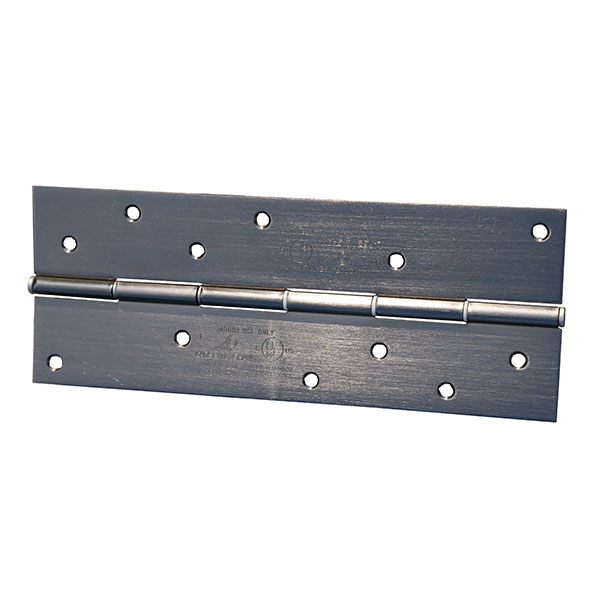

This is a full-length entry door hinge. Leaves attach to the edge of door and frame, revealing only the slim hinge bevel when the door is closed. This is also known as a full mortise hinge.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS300 - 1414254xx | 0.075" | 79.16" | 4.50" | 0.187" |
| LS300 - 1414251xx | 0.075" | 83.118" | 4.50" | 0.187" |
| LS300 - 1414295xx | 0.075" | 83.771" | 4.50" | 0.187" |
| LS300 - 1414323xx | 0.075" | 85.097" | 4.50" | 0.187" |
| LS300 - 1414252xx | 0.075" | 94.992" | 4.50" | 0.187" |
| LS300 - 1414253xx | 0.075" | 118.74" | 4.50" | 0.187" |
Single Edge Guard Hinges

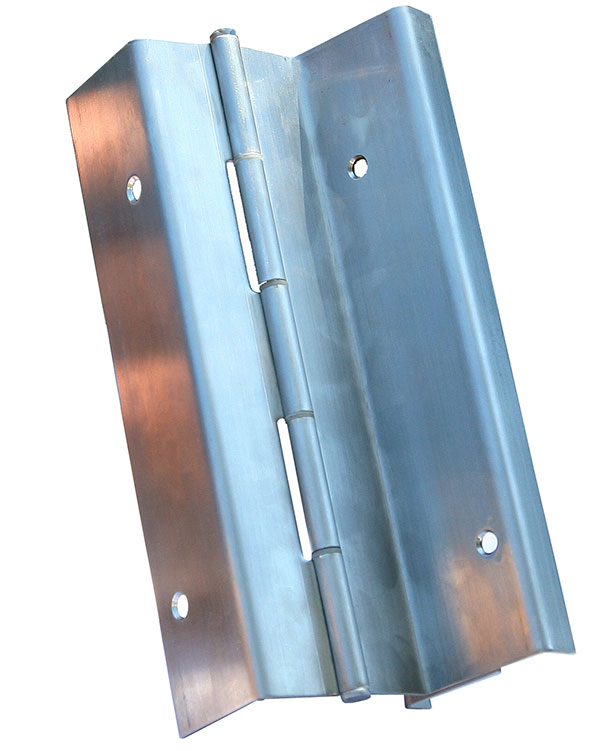

This is a full-length entry door hinge. Includes a ¾" wrap around the leading edge of the door, protecting the inside edge of the door, which is most exposed to damage when open.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS315 - 1414263xx | 0.075" | 79.16" | 5.10" | 0.187" |
| LS315 - 1414256xx | 0.075" | 83.118" | 5.10" | 0.187" |
| LS315 - 1414296xx | 0.075" | 83.771" | 5.10" | 0.187" |
| LS315 - 1414324xx | 0.075" | 85.097" | 5.10" | 0.187" |
| LS315 - 1414262xx | 0.075" | 94.992" | 5.10" | 0.187" |
| LS315 - 1414264xx | 0.075" | 118.74" | 5.10" | 0.187" |
Double Edge Guards Hinges

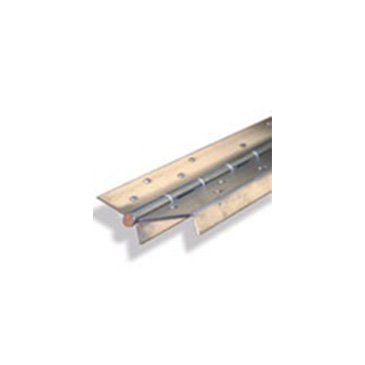

This full wrap edge guard protects the inside and outside hinge edge and spans the length of the door.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS305 - 1414258xx | 0.075" | 79.16" | 5.10" | 0.187" |
| LS305 - 1414257xx | 0.075" | 83.118" | 5.10" | 0.187" |
| LS305 - 1414297xx | 0.075" | 83.771" | 5.10" | 0.187" |
| LS305 - 1414325xx | 0.075" | 85.097" | 5.10" | 0.187" |
| LS305 - 1414259xx | 0.075" | 94.992" | 5.10" | 0.187" |
| LS305 - 1414260xx | 0.075" | 118.74" | 5.10" | 0.187" |
Swing Clear Hinges

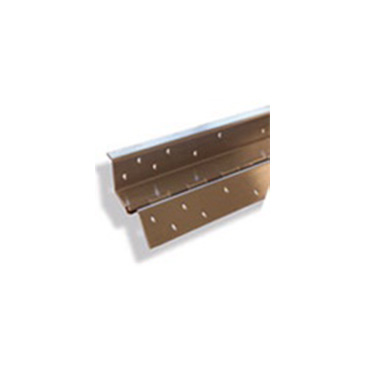

This is a full-length entry door hinge. Swing clear provides a barrier-free clearance in a 32” opening, the pivot point of the hinge is located on the face of the frame, allowing the door to swing out of the opening to provide clear passage through the door. The edge guard protects the inside edge of the door, which is most exposed to damage when open.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS311 - 1414382xx | 0.075" | 79.16" | 5.777" | 0.187" |
| LS311 - 1414326xx | 0.075" | 83.118" | 5.777" | 0.187" |
| LS311 - 1414327xx | 0.075" | 83.771" | 5.777" | 0.187" |
| LS311 - 1414328xx | 0.075" | 85.097" | 5.777" | 0.187" |
| LS311 - 1414329xx | 0.075" | 94.992" | 5.777" | 0.187" |
| LS311 - 1414330XX | 0.075" | 118.74" | 5.777" | 0.187" |
Swing Clear (With frame wrap) Hinges
This is a full length entry door hinge. Swing clear provides a barrier-free clearance in a 32” opening, the pivot point of the hinge is located on the face of the frame, allowing the door to swing out of the opening to provide clear passage through the door. The full wrap edge guard protects the inside and outside edge of the door, which is most exposed to damage when open. The edge guard adjusts to various door thicknesses.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS350 - RD1000x | 0.075" | 79.16" | 5.777" | 0.187" |
| LS350 - 1414650xx | 0.075" | 83.118" | 5.777" | 0.187" |
| LS350 - 141465xxx | 0.075" | 83.771" | 5.777" | 0.187" |
| LS350 - 14146xxxx | 0.075" | 85.097" | 5.777" | 0.187" |
| LS350 - 1414652xx | 0.075" | 94.992" | 5.777" | 0.187" |
| LS350 - 1414653xx | 0.075" | 118.74" | 5.777" | 0.187" |
